Extraction Cell for Papers, Polymers & Food Containers

Extraction Cell for Papers, Polymers & Food Containers
Hover over image to zoom

Description

For FDA Migration Studies or Surface Analysis via P&T Thermal Desorption

These Stainless Steel extraction cells were designed as an extraction cell for FDA migration studies in food and pharmaceutical packaging materials. They can also be used for surface analysis or permeation studies of flat sheets of paper, plastics or polymers for subsequent analysis via thermal desorption (P&T).

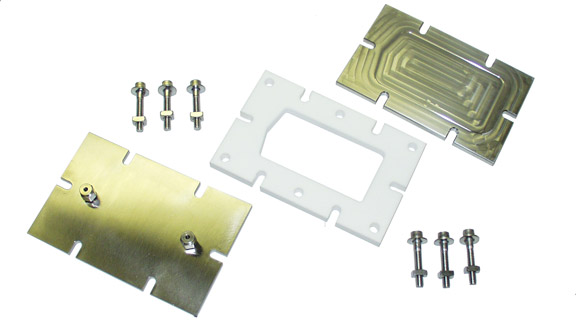

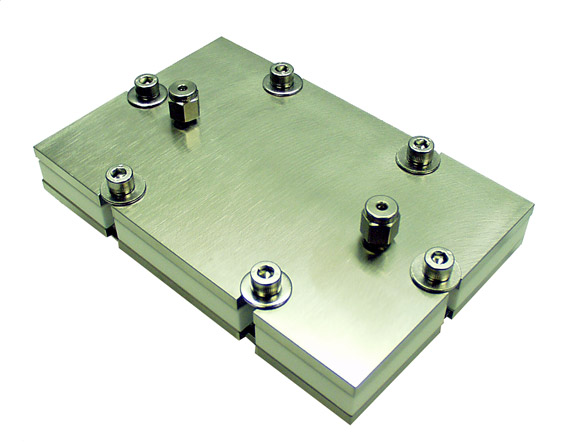

The Extraction Cell system consists of two stainless steel plates which are separated by an inter-changeable PTFE insert. A variety of PTFE inserts are available to vary the chamber volume form 7.5 mL to 500 mL capacity. The plates are bolted together using stainless steel hardware (included with the chamber) after the PTFE insert and flat sample for analysis have been sandwiched between the metal plates. The top plate of the chambers are available with either 1/8” or 1/4” Swagelok fittings. Additional top plates are available for assembly of systems for double sided analysis.
The chamber is designed for the analysis of sample at room temperature or it can be placed on a hot plate or placed inside an oven to analyze samples at elevated temperatures (maximum 200 degrees C due to the PTFE Insert).
PTFE insert spacers are not included with the Extraction Cells. The PTFE spacers must be ordered separately.

Features

  • Four Models Available - 1/8” or 1/4” Swagelok fittings
  • Machined from 1/4” stainless steel plate
  • Raised sealing edge on each plate for efficient sealing
  • Maximum usage temperature - 200 degrees C
  • Sample Chamber can be placed on a hot plate or in an oven for elevated temperature studies
  • Two sizes available - SC600 & SC900

Applications

  • FDA Migration studies on food packaging materials
  • Sample collection for thermal desorption analysis (P&T)
  • Surface Analysis of papers, polymers, and plastics
  • Permeation Studies

Model SC600

  • Overall Size 3” x 5”
  • Sampling surface area-50 mm x 95 mm - 47.5 cm 2 (SC600)
  • Variable chamber Volume - 7.5 mL to 75 mL

Model SC900

  • Overall Size 8” x 9”
  • Sampling surface area-165 mm x 191 mm - 314.5 cm 2 (SC900)
  • Variable chamber Volume - 50 mL to 500 mL
Model SC600
Part No. SizeThicknessMaterialType Picture Quantity
In Stock
Price
EA
Order
SC600 Extraction Cell for Surface Analysis
1/8" Fittings--------- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $393.00
Qty
SC6004 Extraction Cell for Surface Analysis
1/4" Fittings--------- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $393.00
Qty
SC605 PTFE Insert for SC600
5 mL1/16"------thumbnail 5$58.00
Qty

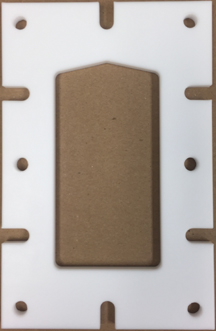

SC630 PTFE Insert for SC600
30 mL1/4"------thumbnail 3$70.00
Qty
SC645 PTFE Insert for SC600
45 mL3/8"------thumbnail 3$79.00
Qty
SC660 PTFE Insert for SC600
60 mL1/2"------thumbnail 13$81.00
Qty
SC675 PTFE Insert for SC600
75 mL5/8"------thumbnail 8$99.50
Qty
781011 Desorption Tube Connector
1/4 in---Stainless Steel--- 29$44.00
Qty
S200P Swagelok Fitting
1/8"---Stainless SteelPlug 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $14.20
Qty
S400P Swagelok Fitting
1/4"---Stainless SteelPlug 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $9.25
Qty
Model SC900
Part No. SizeThickness Picture Quantity
In Stock
Price
EA
Order
SC900 Extraction Cell for Surface Analysis
1/8" Fittings--- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $498.00
Qty
SC9004 Extraction Cell for Surface Analysis
1/4" Fittings--- 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $498.00
Qty
SC950 PTFE Insert for SC900
50 mL1/16" thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $115.00
Qty
SC9200 PTFE Insert for SC900
200 mL1/4" thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $127.00
Qty
SC9300 PTFE Insert for SC900
300 mL3/8" thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $145.00
Qty
SC9400 PTFE Insert for SC900
400 mL1/2" thumbnail 0*Standard lead-time for non-stock items is approximately two weeks depending on the item. $157.00
Qty
SC9500 PTFE Insert for SC900
500 mL5/8" thumbnail 13$170.00
Qty
