SIS supplies over 20,000 parts and services for mass spectrometry, chromatography, vacuum, and other scientific equipment.

News: New 2014 catalog, NIST 14, new products, Nanoliter MALDI/TOF dispensing, heater transfer tube for Thermo, NE300 syringe pump, ...

The heater coils listed below are the standard size coils used on several mass spectrometer heaters repaired by S.I.S.

Style A Sytle B Style C

UOM=EA
Part No. Wire Diameter (in)StyleCompositionLengthID (in)OD (in)# of CoilsWhere Used Quantity
In Stock
Price Quantity
to order
HC1 Heater Coils
0.006ATungsten0.25 in0.0280.04025--- 0[*L2]Lead time for this out-of-stock item is approximately 48 hours. $12.50[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC2 Heater Coils
0.006A3%Re/97%W0.25 in0.0280.04025--- 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $12.50[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC3 Heater Coils
0.007A3%Re/97%W0.25 in0.0280.04225Dupont 490 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $12.50[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC4 Heater Coils
0.007A3%Re/97%W0.31 in0.0280.04230Dupont/CEC 0[*L3]Lead time for this out-of-stock item is approximately 3 days. $12.50[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC5 Heater Coils
0.007A3%Re/97%W0.60 in0.0280.04260Dupont DPI 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $13.75[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC6 Heater Coils
0.006A3%Re/97%W10 mm0.0130.02531--- 0[*L2]Lead time for this out-of-stock item is approximately 48 hours. $13.75[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC7 Heater Coils
0.008ATungsten2 mm0.0160.0325VG 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $12.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC8 Replacement Nermag DCI Heater Coils
0.0024ATungsten2 mm0.0180.0228Nermag 0[*L5]Lead time for this out-of-stock item is approximately 5 days. $13.75[*E][*E] 6 or more: 5% off.
HC9 Heater Coils
0.005ATungsten10 mm0.0400.0505Extrel 0[*L3]Lead time for this out-of-stock item is approximately 3 days. $12.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC10 Heater Coils
0.008ATungsten2 mm0.0650.0753VG 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $12.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC11 Heater Coils
0.012BTungsten0.40 in0.0380.06218--- 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $18.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC12 Heater Coils
0.012BTungsten0.300 in0.0200.04412Bruker X-Ray** 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $18.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC13 Heater Coils
0.012BTungsten0.40 in0.0230.04717Rigaku X-Ray 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $18.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC14 Heater Coils
0.010CTungsten0.254 in------17Elliot X-Ray 20$53.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC15 Heater Coils
0.005APlatinum0.060 in0.0460.0563VG DCI Tip 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $26.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC16 Heater Coils
0.005APlatinum0.070 in0.0460.0565VG DCI Tip 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $24.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC17 Heater Coils
0.012BTungsten0.300 in0.0400.06415Rigaku X-Ray 10$22.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC18 Heater Coils
0.015BTungsten0.513 in0.0640.09420Rigaku X-Ray 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $22.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC19 Heater Coils
0.015BTungsten0.570 in0.0870.11722Bruker X-Ray** 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $22.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC20 Heater Coils
0.012BTungsten0.490 in0.0380.06224Rigaku X-Ray 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $22.00
HC21 Heater Coils
0.008---Tungsten2 mm0.0160.0325VG Vertical 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $12.00[*A][*A] 10 or more: 5% off; 50 or more: 10% off.
HC22 Heater Coils
0.012BTungsten0.400 in0.0230.04721Rigaku X-Ray 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $22.00
HC23 Heater Coils
0.012BTungsten0.300 in0.0200.04412Bruker X-Ray** 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $22.00
HC24 Heater Coils
0.015BTungsten0.407 in0.0320.06216Bruker X-Ray** 0[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item. $22.00
**Formerly Known as Siemens X-Ray

Custom Heater Coils

Heater Coil

Scientific Instrument Services can fabricate coils to custom specifications in a wide variety of sizes, styles and from many different materials. Our coil winding equipment accurately spaces each coil to produce uniform coils of any length. Please call or fax us with your requirements for a prompt quotation.

Additional info on above part numbers also exists on these pages:
PagePart Numbers
Filament & Heater Material/Heater Coils (Catalog A34) HC1, HC10, HC11, HC12, HC13, HC14, HC15, HC16, HC17, HC18, HC19, HC2, HC20, HC21, HC22, HC23, HC24, HC3, HC4, HC5, HC6, HC7, HC8, HC9
New Mass Spec Filaments (Catalog A24) HC8
Nermag DCI Filament HC8
People who purchased the above items also purchased
Ceramic Insulators - Single Hole Round Tube Style
R1201 - Single Hole Round Ceramic Insulator, Od (in)=0.094, Id (in)=0.062 Ceramic Tube - 36 6" L X .094" X .062" - 1 Hole
Mass Spectrometer Filament Repair Services from SIS
FILREP - Filament Repair Filament Repair
Tungsten Wire and Ribbon - Filament Wire and Heater Material
W102 - Tungsten Wire, Diameter (in)=0.010, Diameter (mm)=0.254, (ohms/cm)=0.01115 Tungsten Wire .010" Dia
Tantalum Wire and Ribbon - Filament and Heater Material
W165 - Tantalum Wire, Diameter (in)=0.020, Diameter (mm)=0.51, (ohms/cm)=0.00609 Tantalum Wire .020" Dia Annealled
[no image]SHOP
SHOP - Custom Shop Items
[no image]W122
W122 -

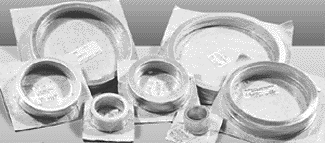

Copper Gaskets for Vacuum Flanges
