LTQ Ion Transfer Tubes

Home
LTQ Ion Transfer Tubes
Hover over image to zoom
Price: 225
Product ID : SIS20198
SIS20198IS Options=Ion Transfer Tube LTQ with 2 cm extension OEM=Thermo 97055-20198 SIS20198 Options=Ion Transfer Tube LTQ OEM=Thermo 97055-20198

Description

This is direct replacement for the ion transfer tube used on the Thermo "LTQ" line of mass spectrometers. The ion transfer tube allows ions from the ESI, APCI, or APPI sources to enter the LTQ Linear ion trap. The LTQ will lose sensitivity over time as contaminates build up inside the tube. It is recommended to replace this guide at least quarterly to insure ultimate instrument sensitivity. Replacement takes only seconds and sensitivity is restored.

  • SIS #SIS20198 replaces Thermo p/n 97055-20198
    used on the LTQ™, LTQ XL™, LTQ FT™, LTQ FT Ultra™, LTQ Orbitrap™.
  • SIS #SIS20198IS includes an extended tubing for DART® and DESI applications (which have a 2-cm extended tubing).
  • Additional tubing extension lengths are available - contact us for a quotation.

Cost savings alternative compared to OEM.

Drawings

Drawings measured in inches.

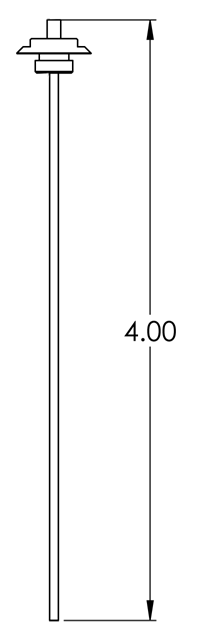

PN# SIS20198

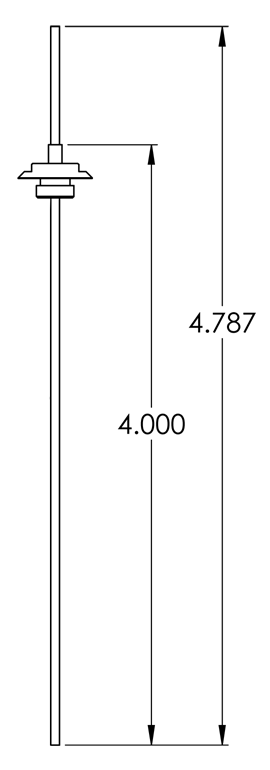

PN# SIS20198IS
with 2 cm extended tubing
