The following ceramic insulators are made from high purity alumina ceramic and are direct replacements for the original Hewlett Packard ceramic insulators used on mass spectrometers. Other sizes of ceramics insulators are listed elsewhere in this catalog.
| UOM=EA | |||||||||

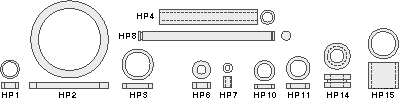

| Part No. | HP # | OD (in) | ID (in) | Thickness (in) | est wt. |
Quantity In Stock |
Price | Quantity to order |
|
|---|---|---|---|---|---|---|---|---|---|
| HP1 | HP Insulator, Ceramic Washer | ||||||||
| 05985-20140 | 0.258 | 0.204 | 0.072 | 0.25 | 28 | $13.00(*A) | |||
| HP2 | HP Insulator, Ceramic Washer | ||||||||
| 05985-20307 | 1.120 | 0.870 | 0.0625 | 0.25 | 0(#) | --- | --- | ||
| HP3 | HP Insulator, Insulator Support | ||||||||
| 05985-20458 | 0.435 | 0.360 | 0.060 | 0.25 | 28 | $15.00(*A) | |||
| HP4 | HP Insulator, Insulator Tube | ||||||||
| 05985-20139 | 0.195 | 0.152 | 1.91 | 0.25 | 19 | $23.00(*A) | |||
| HP6 | HP Insulator, Ceramic Washer | ||||||||
| 05985-20412 | 0.250 | 0.126 | 0.074 | 0.25 | 0(#) | $26.00(*A) | |||
| HP7 | HP Insulator, Contact Insulator | ||||||||
| 05985-20452 | 0.122 | 0.063 | 0.152 | 0.25 | 8 | $15.00(*A) | |||
| HP8 | HP Insulator, Rod w/ Slotted Ends | ||||||||
| 05930-20414 | 0.120 | --- | 1.96 | 0.25 | 0(#) | $20.00(*A) | |||
| HP10 | MSD Ceramic Insulator, Ceramic Spacer Sm. | ||||||||
| 05990-20217 | 0.288 | 0.193 | 0.051 | 0.25 | 0(#) | --- | --- | ||
| HP11 | HP Insulator, Ceramic Spacer, Lg | ||||||||
| 05990-20218 | 0.333 | 0.240 | 0.062 | 0.25 | 32 | $12.00(*A) | |||
| HP14 | HP Insulator, Plate Insulator | ||||||||
| 05989-20109 | 0.375 | 0.187 | 0.196 | 0.25 | 20 | $33.00(*A) | |||
| HP15 | HP Insulator, Draw Out Sleeve | ||||||||
| 05990-20216 | 0.433 | 0.344 | 0.375 | 0.25 | 49 | $60.00(*A) | |||
|
(*_) Marked parts have bulk quantity discount pricing:
Discount code 'A' -- 10 or more: 5% off; 50 or more: 10% off.
| |||||||||
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | |||||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
|||||||||
| SIS Catalog Cross Reference | |
|---|---|
| Page # | Part Numbers |
| A74 - Ceramic Insulators | HP7 |
| A75 - Ceramic Insulators | HP1, HP4 |
| A76 - Ceramic Insulators | HP11, HP15, HP2, HP3 |
| A78 - Ceramic Insulators | HP14 |
| B3 - Agilent Accessories by S.I.S.â„¢ | HP1, HP11, HP14, HP15, HP2, HP3, HP4, HP6, HP7 |
| B7 - Agilent 5970 MSD™ Accessories by S.I.S.™ | HP11, HP15 |
