Agilent (Hewlett Packard) 5971 Source Cleaning

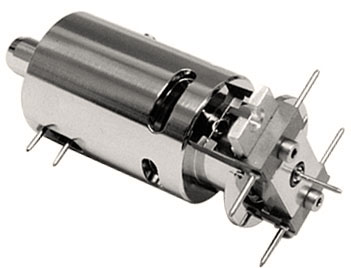

Cleaning of the Hewlett Packard 5971 Source begins with the complete disassembly of the source. Cleaning and polishing of all metal parts are followed by thorough washing and bake out in an oven. Vespel insulators are washed in solvent and baked out. If the Vespel insulators are broken, they will need to be replaced at additional cost as outlined below. The two filament assemblies are repaired. New replacement filaments are not available through S.I.S. After all parts have been repaired, cleaned and baked out, the source is reassembled. The filaments are accurately aligned over the ion entrance holes and clamped in place. The source is checked for resistance leaks as well as visual alignment of all parts.

Parts cleaned: entire source block, lenses, insulators, filament and repeller assembly.

Parts Repaired: two filaments

Not included in standard source cleaning price: replacement of missing screws and other metal source parts as well as broken or missing filament and target ceramics, repeller insulator, and plunger guide.

Shipping in for Repair: Normally the source block and associated parts are shipped in for repair. The source should be thoroughly wrapped in packaging material and double boxed to avoid damage in shipment.

Part No.	Description	UOM	est wt.	Quantity In Stock	Price	Quantity to order
REP100	Source Cleaning of HP 5971/5972/GCD	EA	5	0(#)	$330.00	1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
Ordering information. International (non-US) prices available through your local dealer.
