KDS Legato 100 Infuse Only Syringe Pump

Home

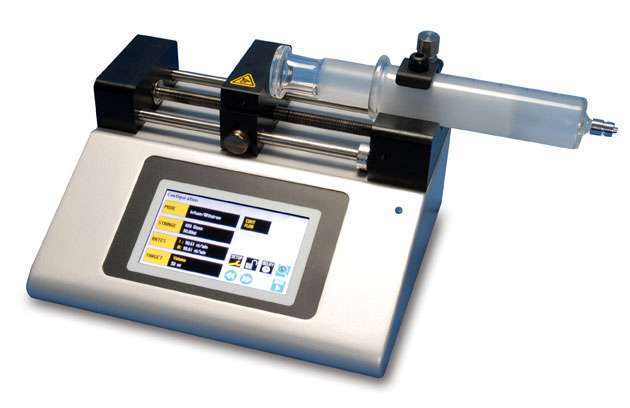

KD Scientific Legato 100 Infuse Only Syringe Pump
Hover over image to zoom

Features

Infuse only single syringe pump. Accommodates syringes from 0.5 µl to 60 mL. User definable flow rates with selectable target volume or time values to control the total infusion volume.

  • Holds one syringe from 0.5 ul to 60 mL
  • Stall detection
  • High resolution color touch screen
  • Unparalleled ease of use
  • Password protected touch display
  • Run LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 30 lbs/13kg linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam

Specs

Specifications
Accuracy +/- 0.5% Reproducibility +/-0.05%
Syringes (min/max) 0.5 µl to 60 mL Flow Rate
  • Minimum (0.5 µl syringe):1.28 pl/min.
  • Maximum (10 mL syringe): 25.99 mL/min
  • Maximum (60 mL syringe): 88.28 mL/min
Display (min/max) 4.3 WQVGA TFT Color
Display with Touchpad
Non-Volatile Memory Stores all Settings
Connectors (min/max)
  • RS485 - IEEE-1394 6 pos
  • USB - Type B
  • I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max) 13.6 kg (30lbs)@ 100% Force Selection
Drive Motor 0.9 Stepper Motor Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps per one rev. of Lead Screw 15,360 Step Revolution 0.069 µm/step
Step Rate - Minimum 27.5 sec/µstep Step Rate - Maximum 26 µsec/µstep
Pusher Travel Rate - Minimum 0.15 µm/min. Pusher Travel Rate - Maximum 159 mm/min
Power 100 - 240 VAC: 50/60 Hz, 50W, 0.5A fuse Dimensions 22.6 cm x 19.05 cm x 15 cm (9" x 7.5" x 5 ")
Weight 2.66 kg (5.9 lbs.) Operating Temperature 4 °C to 40 °C (40 °F to 104 °F)
Storage Temperature -10 °C to 70 °C (14 °F to 158 °F) Humidity 20% to 80% RH non condensing
Part No. Description Price
EA
Order
788100 Legato 100 Single Syringe Infuse Only, Legato 100, 110V/220V $1980.00
