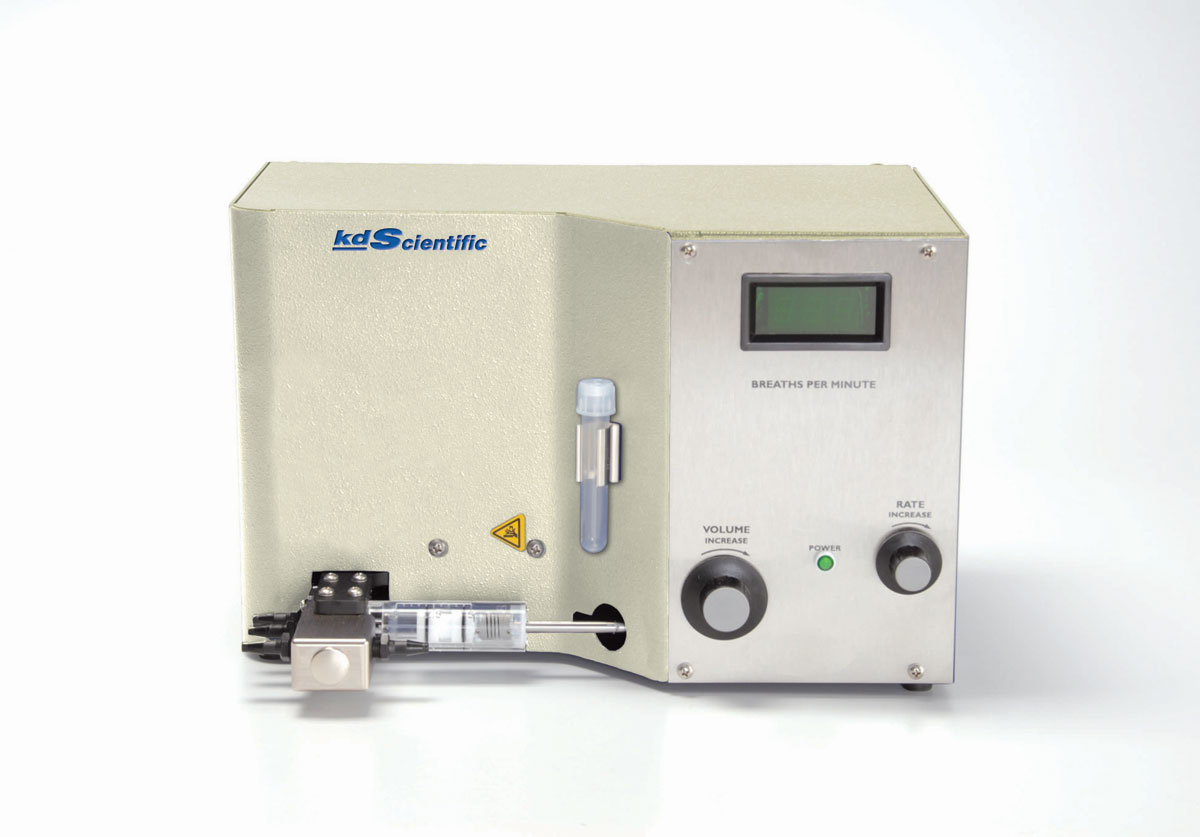

The KDS 35 Ventilator offers a unique design which provides the gentlest, most physiologic artificial ventilation possible. The KDS35 can be used on small animals ranging from 250g to 10kg (22lb).
The enhanced model features minimal dead space due to its new orientation. In addition, dual etching of volume graduations makes for easier viewing. The re-release features silent operation, linear volume and rate control as well as the ability to monitor PEEP.
The KDS 35 ventilator offers adjustable respiratory rate from 18 to 150 strokes/minute and can accommodate tidal volumes from 250g to 10kg. Volume and rate settings can be adjusted while the ventilator is running to ensure reliable and safe ventilation.
| Specifications | |
|---|---|
| Control Modes | Volume |
| Display | Numerical LED displays rate |
| Gas Supply | Room air or non-flammable mixed gas |
| I:E Ratio | 1:1 |
| Number of Animals | 1 |
| PEEP | Provided via attachment of water column |
| Port Size OD | 3/16" (5 mm) |
| Respiration Rate Maximum/Minimum | 150 breaths per min. / 30 breaths per min |
| Respiratory Rate Note | Adjustable from 30 to 150 strokes/min while the ventilator is running |
| Species | Rats, Guinea Pigs, Rabbits |
| Stroke Volume Note | Adjustable from 0.2 to 30 ml/stroke while the ventilator is running |
| Certifications | CE |
| Step Rate | 1 pulse in 27.6 sec to 200 steps/sec |
| Dimensions | 25 cm x 32.5 cm x 20 cm (10" x 13" x 7.9") |
| Weight | 9.5 kg (21 lbs.) |
| Power | 115/230 VAC, 50/60 Hz |
| Part No. | Description | UOM | est wt. |
Quantity In Stock |
Price | Quantity to order |
|---|---|---|---|---|---|---|
| 780391 | Small Rodent Ventilator; KDS 35; 110V/220V | EA | 0 | 0(#) | $4062.00 | |
| (#) Standard lead-time for out-of-stock items is approximately two weeks. | ||||||
Ordering information.
International (non-US) prices available through your
local dealer.
|
||||||
