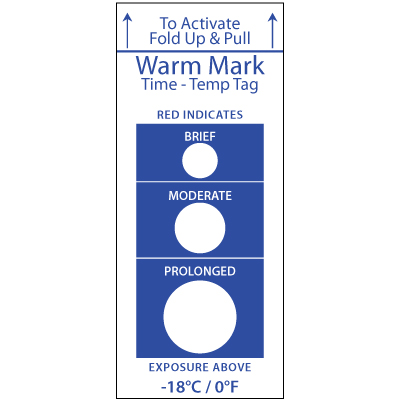

WarmMark Time/Temp Tags - Short Run



The WarmMark Short Run Time Temp/Tag is a widely adopted design to record exposure and duration of exposure above the activation temperature. Activated by warming, the red dye will permanently color in the recording windows to create an immediate record of a temperature excursion





3TM Specifications
Accuracy ±1°C
Shipping No special packaging required for shipping
Storage Must be stored at least 5°C colder than the response temperature
Shelf Life 24 months from invoice date when stored according to requirements
Preconditioning Must be preconditioned prior to use, see WarmMark Instructions
Presentation Self-adhesive backing on release liner.
Dimensions 1.80" x 0.80" x 0.10" (46mm x 20mm x 2.5 mm)

3TM Run-Out Time* Comparison Chart
Part# Response Temperature Increment #1 Increment #2 Increment #3
3TM-18C -18°C/0°F <1 hour 3 hours 12 hours
3TM0C 0°C/32°F 2 hour 12 hours 48 hours
3TM+5C 5°C/41°F <30 minutes 2 hours 8 hours
3TM+8C 8°C/46°F 2 hour 12 hours 48 hours
3TM+10C 10°C/50°F 2 hour 12 hours 48 hours
3TM+20C 20°C/68°F 2 hour 12 hours 48 hours
3TM+25C 25°C/77°F <30 minutes 2 hours 8 hours
3TM+30C 30°C/86°F <30 minutes 2 hours 8 hours
3TM+37C 37°C/99°F <30 minutes 2 hours 8 hours

*Time required for all three windows to turn red when the tag is exposed te a constant temperature of 2°C above the response temperature. The higher the exposure temperature is above the response temperature, the faster the run-out time

UOM=PK
Part No. Description est
wt.		 Quantity
In Stock		 Price Quantity
to order
3TM18C WARMMARK TEMP TAGS 10/PK 10 PER PACK - 2 PACK MINIMUM; -18C/0 F 0 0(#)$21.00
1
3TMOC WARMMARK TEMP TAG 10/PK 10 PER PACK - 2 PACK MINIMUM; 0 C/32 F 0 0(#)$21.00
1
3TM5C WARMMARK TEMP TAG 10/PK 10 PER PACK - 2 PACK MINIMUM; 5 C /41 F 0 0(#)$15.00
1
3TM8C WARMMARK TIME TAG 10/PK 10 PER PACK - 2 PACK MINIMUM; -180C/0 F 0 0(#)$21.00
1
3TM10C WARMMARK TEMP TAGS 10/PK 10 PER PACK - 2 PACK MINIMUM; 10 C/50 F 0 0(#)$21.00
1
3TM20C WARMMARK TEMP TAG 10/PK 10 PER PACK - 2 PACK MINIMUM; 20 C/58 F 0 0(#)$21.00
1
3TM25C WARMMARK TEMP TAG 10/PK 10 PER PACK - 2 PACK MINIMUM; 25 C/77 F 0 0(#)$21.00
1
3TM30C WARMMARK TEMP TAG 10PK 10 PER PACK - 2 PACK MINIMUM; 30 C/86 F 0 0(#)$21.00
1
3TM37C WARMMARK TEMP TAG 10PK 10 PER PACK - 2 PACK MINIMUM; 37 C/99 F 0 0(#)$21.00
1
(#) Standard lead-time for out-of-stock items is approximately two weeks.
