Liquid Crystal Thermometer Sheets

Continuous Visual Monitoring of Surface Temperatures from -30°C to 120°C (-22°F to 248°F)

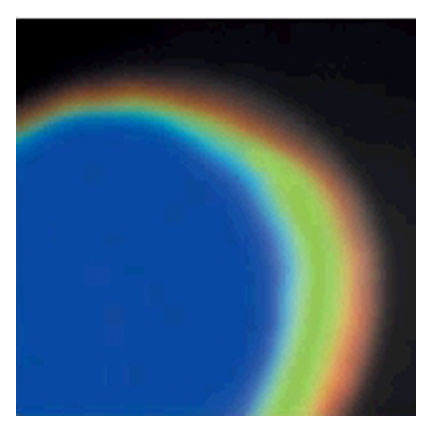

Telatemp liquid Crystal Temperature Indicating Sheets measure 12" x 12" and can be ordered with or without adhesive backing. Standard bandwidth ranges are 20 - 25°C, 25 - 30°C, 35 - 40°C, 40 - 45°C, and 45 - 50°C. The entire sheet goes through the reddish/brown to green to blue color span with black visible outside the range of the sheet. Applications include heat transfer studies, energy surveys, flow visualization, infrared beam profiling and fault/short location in electric components and electronic circuits.

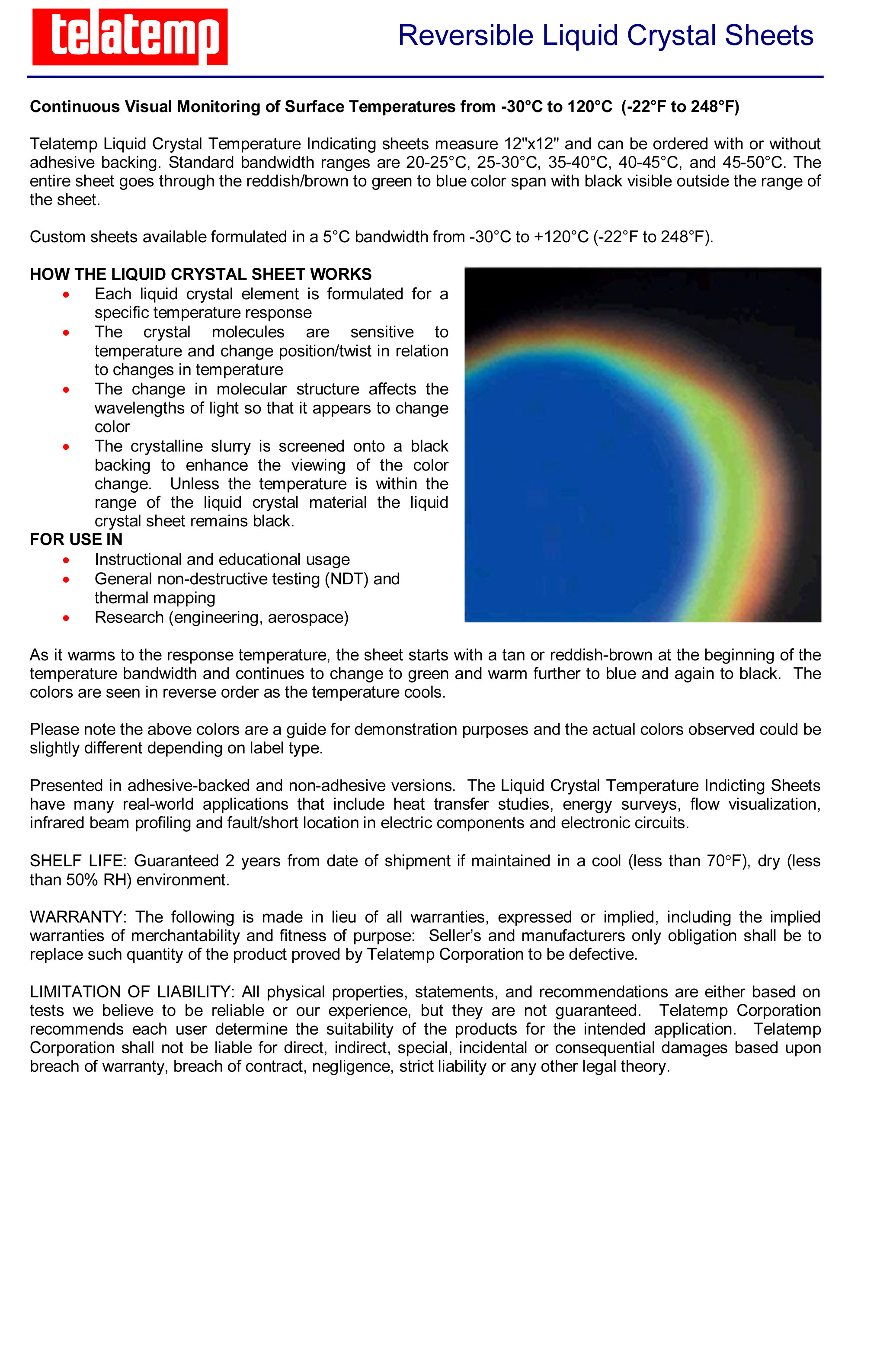

Liquid Crystal Thermometer Sheet Product Information

Liquid Crystal Specifications
Accuracy	-30°C to 59°C ±1°C 60°C to 89°C ±2°C 90°C to 120°C ±3°C
Shipping	No special packaging required for shipping
Shelf Life	24 months from invoice date when stored at room temperature 70°F (21°C) & 50% relative humidity
Color Change Material	Non-toxic mixture of liquid crystal esters
Covering Film	Polyester 5-mil stock
Presentation	With self-adhesive backing on release liner or without adhesive backing
Dimensions	12" x 12" square (304mm x 304mm)

Liquid Crystal Sheets (with adhesive backing
Part #	Response Temperature
SHT2025	20°C to 25°C
SHT2530	25°C to 30°C
SHT3035	30°C to 35°C
SHT3540	35°C to 40°C
SHT4045	40°C to 455°C
SHT4550	45°C to 50°C
Liquid Crystal Sheets (without adhesive backing
Part #	Response Temperature
SHT2025N	20°C to 25°C
SHT2530N	25°C to 30°C
SHT3035N	30°C to 35°C
SHT3540N	35°C to 40°C
SHT4045N	40°C to 45°C
SHT4550N	45°C to 50°C

Part No.	Description	UOM	est wt.	Quantity In Stock	Price
SHT2025		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT2530		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT3035		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT3540		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT4045		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT4550		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT2025N		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT2530N		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT3035N		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT3540N		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT4045N		---		0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	CALL
SHT4550N	LIQUID CRYSTAL SHEET WITHOUT ADHESIVE BACKING	EA	0	0^{[*L]Standard lead-time for out-of-stock items is approximately two weeks depending on the item.}	$49.00
[*L] Standard lead-time for out-of-stock items is approximately two weeks depending on the item.
Ordering information. International (non-US) prices available through your local dealer.
