SL Sensor Temperature Recording Labels

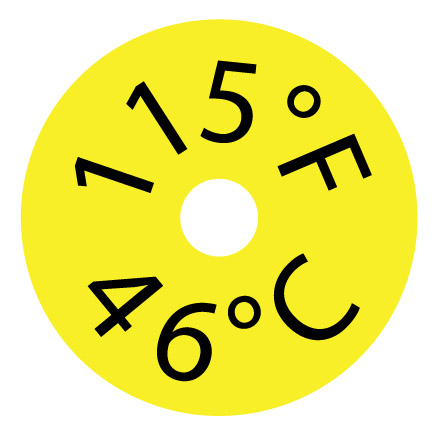

Telatemp's SL Sensor Labels record warming temperatures that could damage a product or are required to achieve certain bonding or flow processes. The single window chemical sensor in the middle of the bright yellow SL label provides a permanent color change from silver to black when exposed to the rated temperature.
| SL Sensor Specifications | |
|---|---|
| Accuracy | ±1°C or 2% of rated values |
| Shipping | Special insulated packaging required to ship labels rated 130°F/54°C or lower |
| Shelf Life | 24 months from invoice date when stored at room temperature 70°F (21°C) & 50% relative humidity |
| Color Change Material | Non-toxic temperature responding compound |
| Substrate | Yellow polyester film |
| Adhesive | Acrylic adhesive backing on a release liner. |
| Presentation | On cards of 30 to 50 pieces, or rolls of 1200 pieces |
| Dimensions | 0.40" (10 mm dia.) |
| SL Sensor Temperature Labels | |||||
|---|---|---|---|---|---|
| Part# | Response Temperature | Part# | Response Temperature | ||
| SL100F | 100°F / 38°C | SL220F | 220°F / 104°C | ||
| SL105F | 105°F / 40°C | SL230F | 230°F / 110°C | ||
| SL110F | 110°F / 43°C | SL240F | 240°F / 116°C | ||
| SL115F | 115°F / 46°C | SL250F | 250°F / 121°C | ||
| SL120F | 120°F / 49°C | SL260F | 260°F / 127°C | ||
| SL130F | 130°F / 54°C | SL270F | 270°F / 132°C | ||
| SL140F | 140°F / 60°C | SL280F | 280°F / 138°C | ||
| SL150F | 150°F / 66°C | SL290F | 290°F / 143°C | ||
| SL160F | 160°F / 71°C | SL300F | 300°F / 149°C | ||
| SL170F | 170°F / 77°C | SL310F | 310°F / 154°C | ||
| SL180F | 180°F / 82°C | SL320F | 320°F / 160°C | ||
| SL190F | 190°F / 88°C | SL330F | 330°F / 166°C | ||
| SL200F | 200°F / 93°C | SL330F | 340°F / 171°C | ||
| SL200F | 200°F / 93°C | SL340F | 340°F / 171°C | ||
| SL210F | 210°F / 99°C | SL350F | 350°F / 177°C | ||
