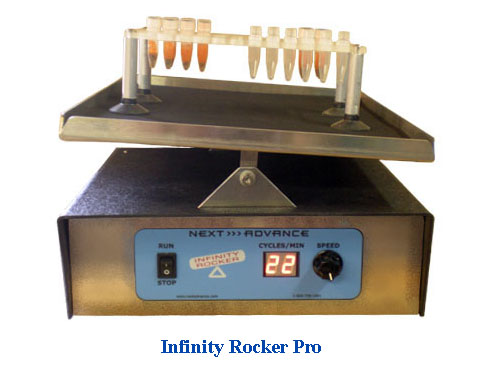

Infinity Rocker Pro by Next Advance

Infinity Rocker Pro by Next Advance
Hover over image to zoom
Price: 971.85
Product ID : IR101
IR101 Model=Pro [11x14 in.] Infinity Rocker IR103 Model=XL [20x16 in.] Infinity Rocker IR102 Model=Mini [8x9 in.] Infinity Rocker

Description

The Long-Life Laboratory Platform Rocker with a 4 Year Warranty

The last rocker you will ever need to buy! The Infinity Rockers are designed with constant, heavy-duty use in mind, and they will last for many years - unlike all those rockers with one-year warranties. Ultra quiet, they are ideal for many applications including: mixing, gel staining and destaining, blotting, cellculture, hybridization, washing, etc.

Incredible 4 year parts and labor warranty. Rugged, reliable, and quiet. Tilt is adjustable from 1 ° to 18 °. 1 - 80 cycles per minute. Digital speed display. Rated for up to 11 lbs. (5 kg) of load.

Features

  • Maximum load is 11 lbs. (5kg)
  • Large easy to read digital display
  • Digital Speed Control adjustable from 1 to 80 cycles per minute
  • Extremely Quiet Operation
  • Tilt angle adjustable fro 1 ° to 1 8°
  • Extra large platform. Platform sizes:
    • Infinity Rocker Pro: 11" x 14" (28 cm x 36 cm)
    • Infinity Rocker Mini: 8" x 9" (20 cm x 23 cm)
    • Infinity Rocker XL: 20" x 16" (51 cm x 41 cm)
  • Platforms have a textured rubber mat
  • Can be used in cold rooms and incubators, 4 °C to 60 °C (Avoid Condensation)
  • CE/UL certified 24 volt power supply - works with wall outlets worldwide
  • 4 year warranty
  • 30 day money back guarantee
  • Made in USA

Specs

Platform Rocker Models and Specs
Model Platforms Stacking Tray
(sold separately)
Size
(inches)
Weight
(lbs.)
Available Speeds
(cycles/minute)
Max Load
Infinity Rocker Pro 11" x 14"
(28 cm x 36 cm)
ST201 11" wide x 14" deep x 6.5" high 17 1 - 80 11 lbs.
(5 kg)
Infinity Rocker Mini 8" x 9"
(20 cm x 23 cm)
ST202 8" wide x 9" deep x 6.5" high 12 1 - 80 11 lbs.
(5 kg)
Infinity Rocker XL 20" x 16"
(51 cm x 41 cm)
ST203 20" wide x 16" deep x 6.5" high 26 1 - 80 11 lbs.
(5 kg)

Frequently Asked Questions

Specifications:

Will these rockers work with different voltages (in different countries)?

Yes. The rocker uses 24V DC supplied by a small external power supply that plugs into a wall outlet. Next Advance will supply the appropriate power supply for the local power and wall outlet configuration.

What is the maximum load?

The rocker can handle 11 lbs. (5 kg).

What is the range for the tilt angle?

The amount that the rocker platform tilts back and forth can be adjusted from as little as +/- 1 ° to as much as +/- 18 °.

What is the difference between Infinity Rockers and Next Rockers?

Infinity Rockers and Next Rockers are both rugged, quiet, rockers with lots of power. Infinity Rockers have digital speed control and a digital display of the rocking rate in cycles per minute (cpm). Because Infinity Rocker motors are brushless, i.e. do not have brushes that can wear out, they will last for many years.

What is the rocking rate?

For Infinity Rockers, the rocking rate can be as slow as barely moving to a maximum speed of 80 cycles per minute (160 rocking motions per minute). Next Rockers are available in a regular speed range (4 to 80 cycles per minute) or super slow (1 to 20 cycles per minute).

What are the Super Slow versions?

The Next Rockers come in standard and super slow versions. For those applications that require slow, smooth rocking, we recommend the super slow (up to about 20 cycles per minute) versions. They provide finer speed control at the lower speeds. The motor in these versions is geared down for slower operation and greater power, just as gears on a bicycle allow for more power at lower speeds.

Can I use these rockers in incubators or cold rooms?

Platform rockers can operate in incubators (up to 60 °C) or cold rooms (down to 4 °C) if the temperature is kept constant and the humidity is not excessive. Temperature swings which cause condensation will damage the electronics and void the warranty. In fact, the electronic circuitry includes additional heat sinks to ensure reliable operation at elevated temperatures.


Operation:

How do I adjust the tilt angle?

To adjust the angle, use a flat blade screwdriver to loosen the labeled screw on the rear of the instrument, slide the linkage to the desired position, then tighten the screw.

How do I adjust the rocking rate?

You can turn the knob on the front of the instrument to adjust the rocking speed.

Can I clean the rubber mat?

Yes. You can remove the rubber mat from the platform and clean it with soap and water. Let it dry before placing it back on the platform.
