Tenax® TA Breakthrough Volume Data

Home
Tenax® TA with...

Tenax TA is a porous polymer resin based on 2,6-diphenylene-oxide. It is the most widely used adsorbent resins for use with Purge and Trap Thermal Desorption for applications such as trapping VOC's in air and liquids. Tenax TA is especially beneficial in trapping volatile organics from high moisture content samples due to its low breakthrough volume for water. It is available from Scientific Instrument Services in 5.0, 10.0 and 25 gram bottles.

Tenax TA Breakthrough Volume Data

Use of Breakthrough Volume Data

In the following chart, the Breakthrough Volume data is expressed in Liters per gram of resin. This is the volume of gas required to elute the organic compound off 1.0 gram of resin at the indicated temperature. The Blue highlighted areas indicate that the Breakthrough Volume is greater than 10 liters per gram of resin which is an acceptable value for the trapping of the organic compound at that temperature. The Red highlighted areas indicate that the Breakthrough Volume is less than 0.010 Liters per gram of resin or less than 10 ml/gram of resin. This is a good temperature to assure complete desorption of the organic compound off the adsorbent resin during the thermal desorption process.


Tenax TA with Hydrocarbons

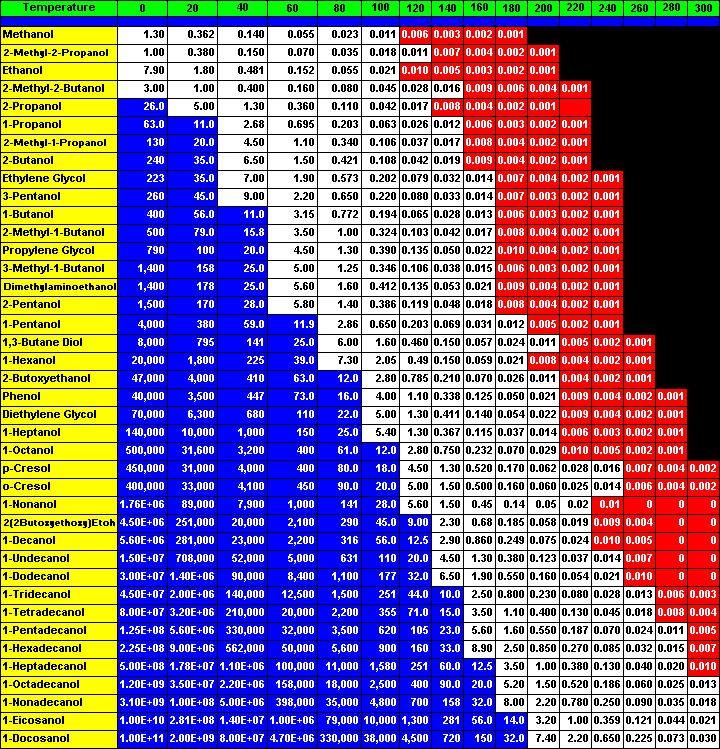

Tenax TA with Alcohols & Glycols

Tenax TA with Alkenes

Tenax TA with Acetates and Acids

Tenax TA with Aldehydes and Ketones

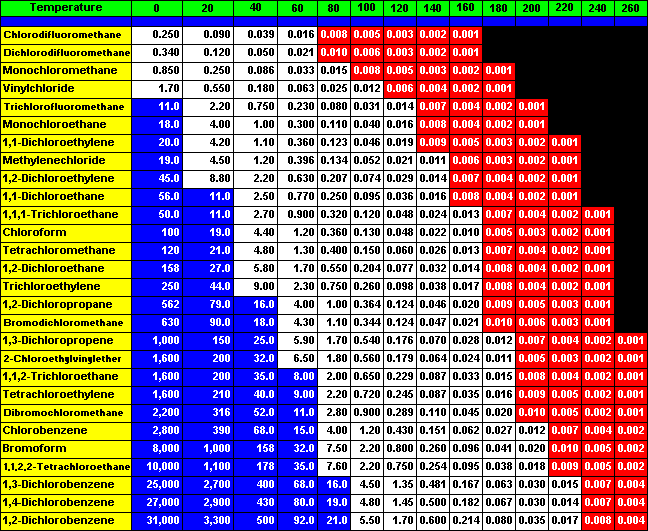

Tenax TA with Halogens

Tenax TA with Amines

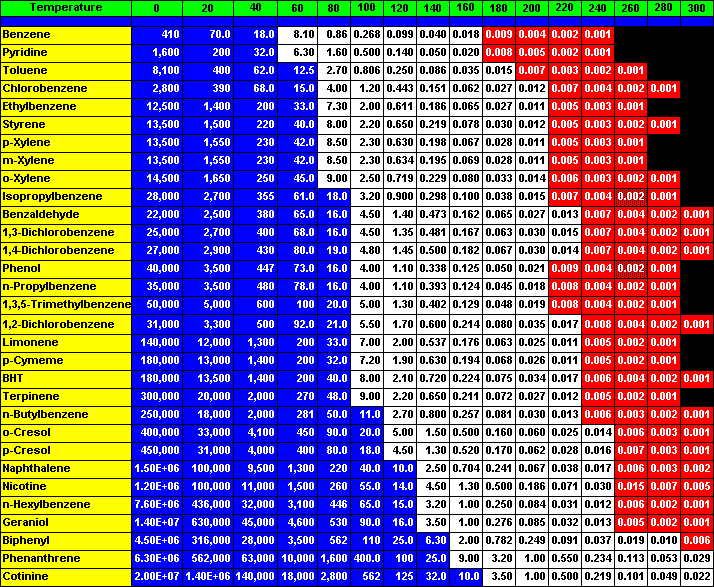

Tenax TA with Aromatics and Terpenes

Tenax TA with Water

FREE Tenax TA Breakthrough Volume Chart

*with the purchase of a 10.0 gram or 25.0 gram bottle of Tenax TA

Available ONLY from Scientific Instrument Services

Tenax® is a registered trademark of Buchem BV.
